Blower Motor Resistors

What do Blower Motor Resistors do?

Blower Motor Resistors control the electrical current flowing from the fan switch to the blower fan. They allow motorists to set the fan at different speeds. High-temperature currents can melt the original connectors.

Standard® offers full-line coverage for domestic and import applications, with more than 770 blower motor resistors.

To help you restore proper HVAC functions, we manufacture high-quality replacements in our IATF 1649-certified North American facility. They match the fit, form, and function of the original. On top of that, we test them to ensure performance and reliability.

What are the common causes of failure?

Due to technological advancements on today’s automotive heating and cooling systems, blower motor resistors have high amounts of current running through their connectors. As a result, the current produces heat that can melt the connector and resistor. Worn OE blower motors can create a demand for current that also damages the resistor or module. The excess current melts the wiring and plastic shroud, damaging the interface pins on the controller’s circuit board.

What are the common causes of failure?

Product Spotlight: Blower Motor Resistor (RU631)

On most full-size GM trucks and SUVs from 2001–2007, the Blower Motor Resistor has two common failure modes: water damage and excess heat.

The GM vehicles are unable to manage condensation. If the duct is clogged, condensation will collect, creating a pool of water that can seep into and flood the Blower Motor Resistor module. Worn OE blower motors can create a demand for current that also damages the module. The excess current melts the wiring and plastic shroud, damaging the interface pins on the controller’s circuit board.

Our RU631 Blower Motor Resistor features several improvements over the OE, including an umbrella cover design that prevents water intrusion and a larger-output power device and upgraded two-ounce copper board that protects against overheating.

Download Product Information

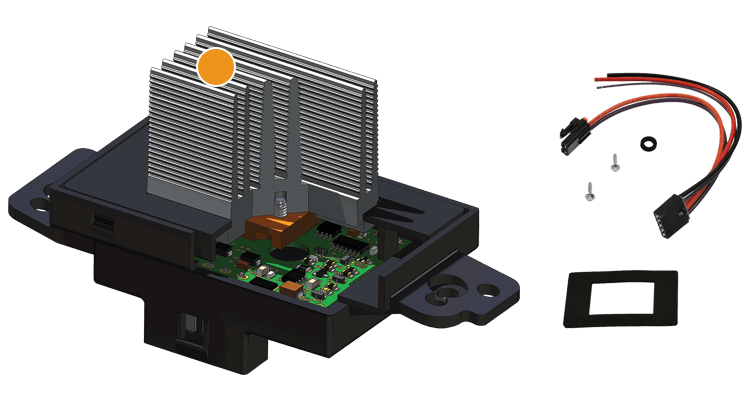

  • blower-motor-resistor-1-1-png

    Larger output power device mounted directly to heat sink improves heat dissipation

  • blower-motor-resistor-2-1-png

    Improved umbrella cover design prevents condensation from entering module

  • blower-motor-resistor-3-2-png

    RTV sealant around heat sink and cover perimeter prevents water intrusion

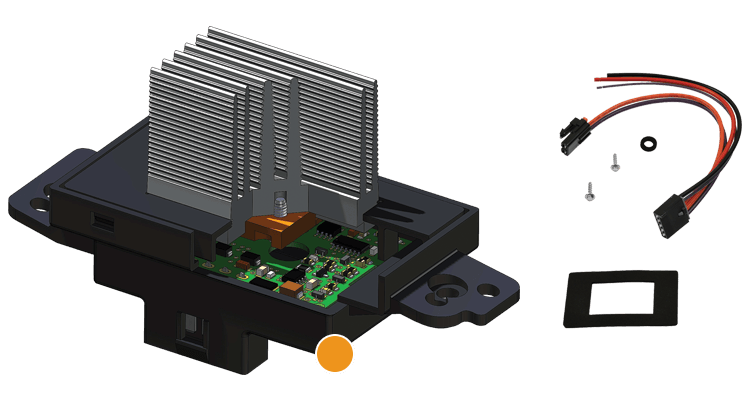

  • blower-motor-resistor-4-1-png

    Manufactured in the USA

  • blower-motor-resistor-5-1-png

    Upgraded 2 oz. copper board increases conductivity and power dissipation to prevent overheating

  • blower-motor-resistor-6-1-png

    Included wire harness undergoes voltage drop testing to ensure performance

Tech Tip: Check the connector when replacing a blower motor resistor.

Be sure to inspect the mating connector for signs of damage caused by excessive heat. If damaged, replace with a problem-solving Blue Streak® blower motor resistor kit or a premium Standard® connector.

Blower Motor Resistor Testing

Blower Motor Resistor Testing

Our Engineers sample-test every blower motor resistor for draw, resistance and RPM. Test samples are validated to precisely match the OE specs and meet or exceed the OE for durability. We examine performance at all speeds, and then conduct 48-hour load tests.

It’s how we know our blower motor resistors will operate at peak performance and deliver a long service life under all operating conditions.

New BMR Kits featuring our High-Temp Harnesses

Hi-Temp Blower Motor Resistor Kits

Blue Streak® is proud to offer premium Blower Motor Resistor Kits as a high-quality solution for melted connectors and blower motor resistors. Blue Streak® improved on the OE design to create a connector that will withstand excessive heat and reduce future failure. Our connectors undergo thermal cycling testing to withstand extreme temperatures to prevent melting. Blue Streak® offers blower motor resistors that are direct-fit replacements and engineered to withstand the high amounts of current that can melt the resistor or connector.

View our Blue Streak® Just the Facts: Blower Motor Resistor Kits flyer

  • bmrk_fb_1jpg

    Direct-fit replacement electrically operated resistor that replaces damaged OD units restoring A/C and heater blower motor variable speed control

  • bmrk_fb_2jpg

    Tin-plated steel terminals guarantees maximum contact and excellent fit, form and function

  • bmrk_fb_3jpg

    Made from high quality ceramics with copper electrical connectors to ensure accurate and precise resistance values for long life and high performance

  • bmrk_fb_4jpg

    Thermally protected with on-board fuse

  • bmrk_fb_5jpg

    Our plants are IATF 16949 and ISO 9001 certified which ensures that every part is the right part for the right vehicle

  • bmrk_fb_6jpg

    Precision resistor coils for better fan control

  • bmrk_fb_7jpg

    Kanthal D resistor wire provides longer life span for higher watt resistors

  • bmrk_fb_8jpg

    Undergoes testing with thermal cycling to withstand temperatures ranging from -22°F to 257°F

  • bmrk_fb_9jpg

    TXL copper wiring withstands high electric current to reduce heat-related failure

  • bmrk_fb_10jpg

    High-temp connector withstands extreme temperatures to prevent melting

Blower Motor Resistor Replacement Tips

Ford Fusion Blower Motor Resistor Replacement (with Auto Temp Control)

  • maxresdefault

    Ford Fusion Blower Motor Resistor Replacement (with Auto Temp Control)

  • maxresdefault

    2006 Chevy Impala Blower Motor Resistor Replacement

  • maxresdefault

    Blower Motor Resistor Replacement Tips

How to Replace a Blower Motor Resistor

There are numerous styles of Blower Motor Resistors. No matter what style of a resistor is being replaced in the vehicle you are working on, there are a few universal tips that should always be followed which we go over in this "Installation Spotlight" video.
